Chlorinator- chlorination plant
Cylinder Mounted Chlorinator
- Gaseous chlorine Cylinder Mounted Chlorinator is used in the water treatment plant, swimming pool is developed for providing working as safe and space-saving chlorinator comprising flow control valve, vacuum regulator, rotameter and yoke clamp for direct connection to the cylinder. Further, for optimum performance support, it is also provided with injector assembly vent, vacuum tubing of 5 meters, and a gas filter. Operation Principles: chlorination plant

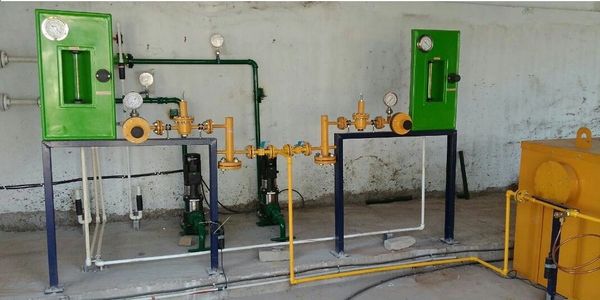

Frame Mounted Chlorinator
- Chlorinators are devices used to inject gaseous chlorine into the water. They are used to add chlorine to water treatment plant for disinfection. Chlorinators can also be used to add chlorine to sewage to destroy bacteria and eliminate odors. chlorination plant are said to be fairly simple to operate. Easy operation, combined with chlorine's ability to destroy bacteria within a desirable period, makes chlorinators popular for many applications. Furthermore, chlorine offers long-term protection against certain bacteria and is fairly low in cost.

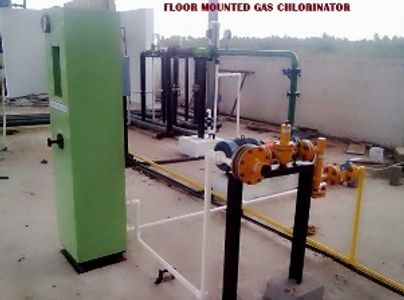

Floor Mounted Gas Chlorinator
- Gaseous chlorine is cabinet mounted vacuum operated, solution feed type. It is designed for floor mounting, Frame, or wall mounting and incorporates a filter, flush-mounted chlorine pressure gauge, are liable vacuum regulator, and an accurate flow-meter, a precise flow control valve, and effective differential regulator, an injector, and a positive non-return valve. All the components are mounted in a two-tone, gel-coated attractive fiberglass cabinet. The vacuum the regulator is of an exclusive design, which opens only when the vacuum is generated by the injector. On failure of water to the injector the vacuum regulator closes automatically. D P Regulators are provided only in Capacities of 10 kgs/hr and above. The material of construction of the various components of the chlorination plant is highly resistant to chlorine gas, like PVC, HDPE, Teflon (PTFE), Monel, Silver, Carbon steel, and fiberglass. The simple yet advanced design of the various components reduces the maintenance to a bare minimum. All the components are easily accessible from the rear of the cabinet for Periodic Inspection and Maintenance. The Chlorination system is pre-assembled and is fully tested under simulated operating conditions. This saves time and money during installation and helps towards a smooth start-up.Chlorine uses for producing safe drinking water in water treatment plant Chlorinated compounds are used mostly for sanitation, pulp bleaching, disinfectants, and textile processing... chlorinator
Evaporator
Chlorine Evaporator
- Liquid chlorine from the toner /Cylinders is transferred to the inner chamber of the vaporizer due to tonner pressure. This chamber is immersed in a water bath, which is heated by 3 Nos. heaters. The water to the water bath is supplied via a pipe which is controlled by an on-line solenoid Valve, which opens once the water level falls below the preset level and closes once the water reaches the higher preset level. The temperature of the water is controlled by a thermostat, which switches on or off depending on the temperature reached, by the water bath. Cathodic protection is provided where DC current is passed through sacrificing carbon anodes to protect, the Heat Exchanger, and Hot water tank surface exposed to water from Galvanic Corrosion. water treatment plant chlorination plant gaseous chlorinator
Chlorine Absorption System
- CHLORINE TONNER LEAK ABSORPTION SYSTEM ( Chlorine Scrubber) gaseous chlorine has manifold diverse uses. As its usage and handling rise, the danger associated with it also rises. As such a potential risk involves a severe emergency that may suddenly and unexpectedly occur, such eventualities should be anticipated and proper methods should be devised in advance to meet them. Nowadays the industrial safety and protection control Personnel are very serious about accident-prone poisonous gas leakage, particularly chlorine leakage. Cl2 gas LEAKS · The most common leaks in chlorine Tonner or Cylinder are the leaks around valves and take off copper tube connectors. The other possible, severe emergency that may occur, is either due to 1. Breakdown of valves or 2. Any puncture on the wall of the Tonner. The common leaks at valves or copper tubing can be met with standard emergency kits, but the others will be grave and may suddenly and expectedly happen. It can be extensive and heavy. LATSHA TECHNOLOGIES has developed this package system to control and arrest the heavy leaks from the chlorine tonner based on the recommendations of 1. Chlorine Institute Inc., U.S.A 2. Bureau of Indian Standards 3. National Safety Council 4. Alkali manufacture’s Association of India DESCRIPTION · The package system consists of 1. FRP Gas Hood [s] 2. Chlorine gas suction blower [s] 3. Absorption tower 4. Absorption tank 5. Absorption circulation pump [s] 6. Interconnection pipes, fittings, instruments, and valves, etc., 7. Chlorine Gas Leak Detector with sensor [s] 8. Control Panel Proper care has been taken in the selection of the material of construction of equipment so that they are corrosion resistant. PROCESS · If the leak is uncontrollable, the FRP gas hood is placed over the tonner manually to cover the leaky tonner. The outlet nozzle of the hood is connected to blower suction by a flexible PVC hose and/or PVC/FRP piping. The hood prevents the leaky chlorine gas to spread into the atmosphere. Alternatively, as a precautionary method, the Hood / Hoods can always be placed over the tonner [s] which is /are in operation. The absorbent pumps and suction Blower / Fans are started [Manually or in Automatic mode]. The Blower sucks the leaked chlorine gas, directs to the absorption tower, where chlorine meets counter currently the absorbent solution. The chlorine gas is absorbed by absorbent and the air is vented at the top of the tower. As this is absorption accompanied by a chemical reaction, there will be only nil or negligible traces of chlorine in the air vent. The process of starting Absorbent Circulation Pump and Blower can be done automatically based on the signals from Chlorine Gas Leak Detector sensor[s] located close to the Tonners and in Chlorination Plant. The sufficient quantity of absorbent is continuously circulated in the tower from the absorbent tank till the tonner gets emptied. The spent absorbent, after completion of all chlorine will contain only sodium chloride, sodium hypochlorite, or sodium sulfate salts which are innocuous. This can be disposed of without any pollution problem in water treatment plant chlorinator
